2FGB100BPS89 DN100 Kvs=130
Mã sản phẩm: 2FGB100BPS89 DN100 Kvs=130
Liên hệ
The 2FGB.BPS89 are intended for use in heating, thermo-ventilation, air conditioning systems, both civil and industrial, and in industrial thermal process plants. They find application in the control of fluids belonging to group 2 (water, superheated water, steam).
The peculiar characteristic of these valves is to work with high close-off and low-leak pressure. This makes them particularly suitable for applications on high pressure fluids and with high exchange ΔT such as overheated water and steam.

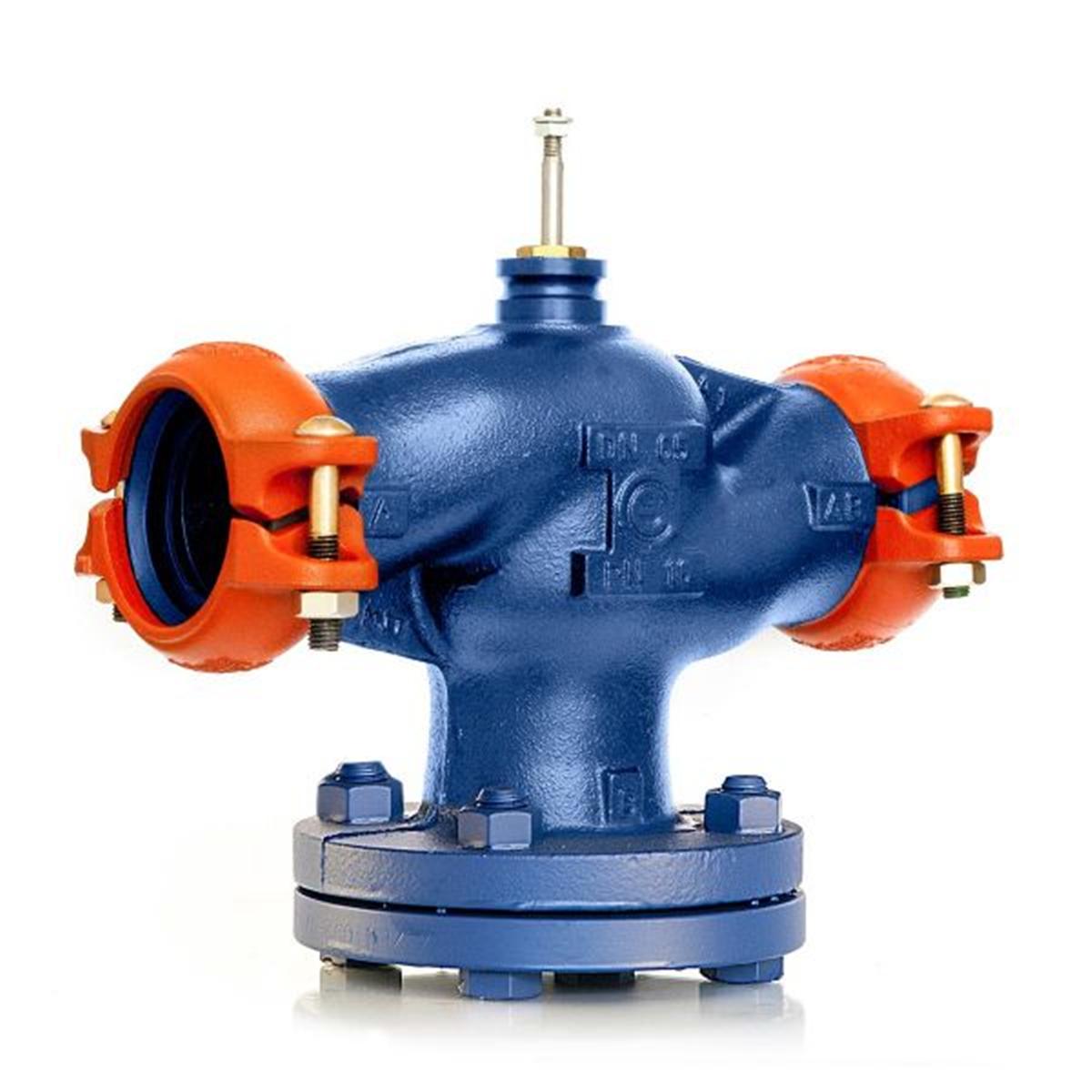

The valve body is made of gray G25 cast iron with grooved connections, the brass plug with an equipercentual characteristic and the stem in stainless steel AISI 303. The stainless steel stem seals are made with EPDM O-ring seals compatible with water and water and glycol mixtures in the specified temperature range.
Valve body | Cast Iron |
---|---|
Plug | Brass |
PN | 16 |
T Fluid min [°C] | -10 |
T Fluid max [°C] | 150 |
Leakage [% Kvs] | 0,03 |
Stroke [mm] | 45 |
Valve type | 2 way balanced |
DN [mm] | 100.00 |
Kvs | 130.00 |
Connection | Flanged |
Fluid | Water |
Max Differential Press. [kPa] | 200 |
Connection size | UNI EN 1092-1 |
Application | HVAC-R |
