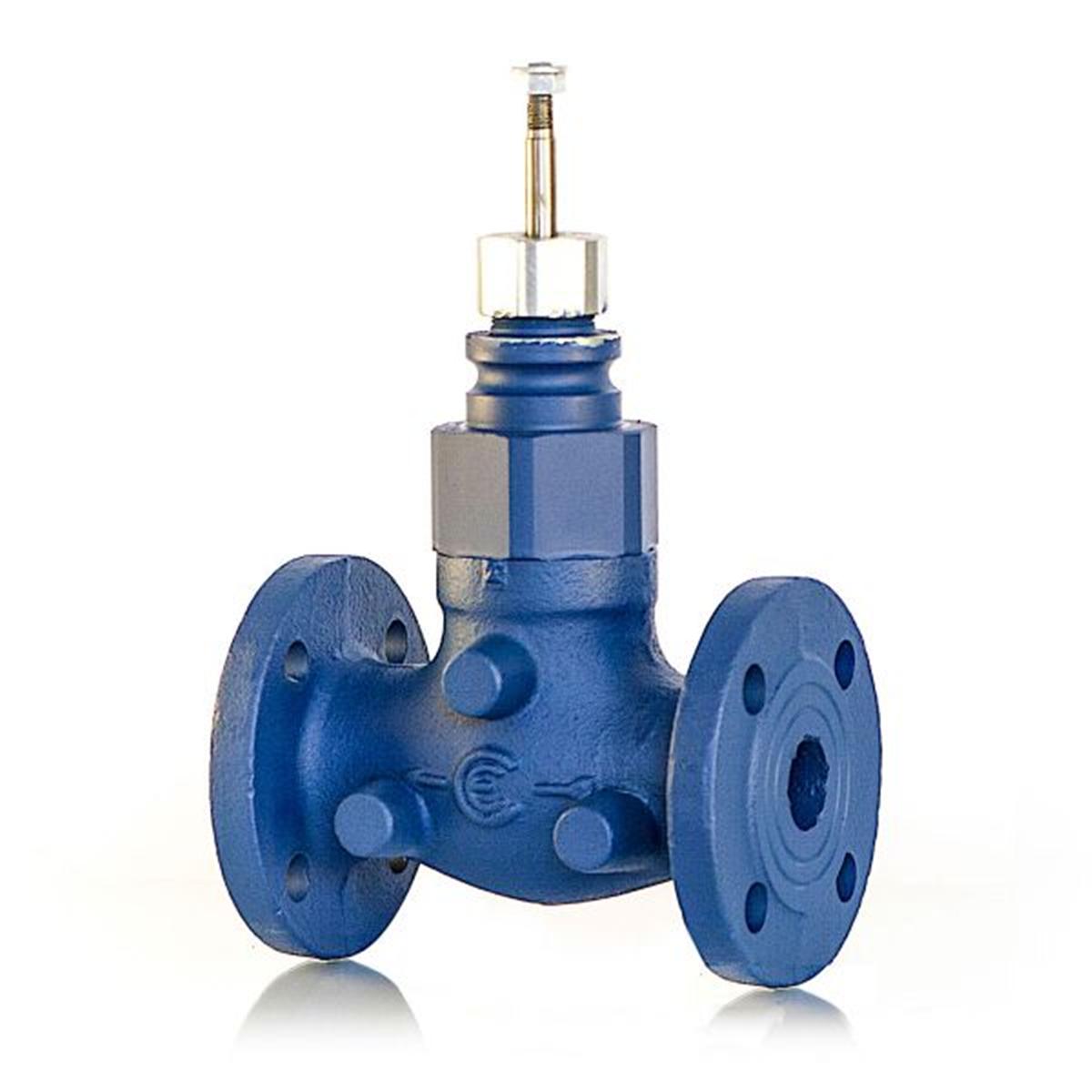

2FGA15R3 DN15 Kvs=2,5
Mã sản phẩm: 2FGA15R3 DN15 Kvs=2,5
Liên hệ
The 2FGA series valves are used for the control of fluids belonging to group 2 (water, superheated water, steam) according to the provisions of article 13 of Directive 2014/68/EU (PED) in air conditioning, heating and civil heating systems and industrial and plants and thermal machines of industrial processes; therefore they can not be used as safety valves.
The valve body is made of gray cast iron with a stainless steel plug with an equipercentual characteristic and PN16 flanged connections. Seat and plug in stainless steel AISI 303 and Teflon seals make the valve particularly suitable for the control of aggressive fluids such as saturated or overheated steam.
Valve body | Cast Iron |
---|---|
Plug | Inox |
PN | 16 |
T Fluid min [°C] | -10 |
T Fluid max [°C] | 200 |
Leakage [% Kvs] | 0,02 |
Stroke [mm] | 16,5 |
Valve type | 2 way |
DN [mm] | 15.00 |
Kvs | 2.50 |
Connection | Flanged |
Fluid | Water, Steam |
Max Differential Press. [kPa] | 600 |
Connection size | UNI EN 1092-1 |
Application | Industrial |
