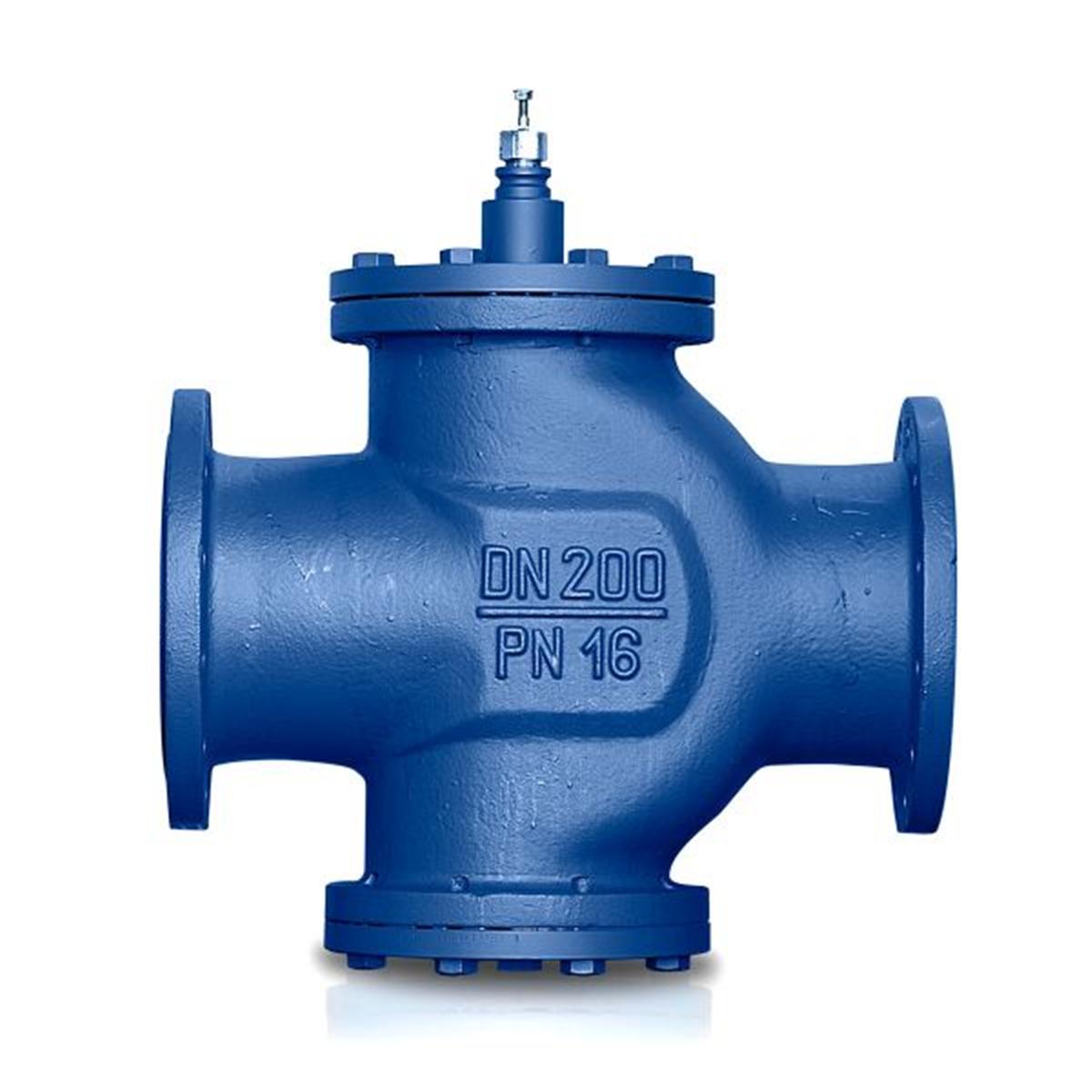

2FGA200B DN200 Kvs=500
Mã sản phẩm: 2FGA200B DN200 Kvs=500
Liên hệ
The 2FGA200B valves are used for the control of fluids belonging to group 2 according to the provisions of art. 13 of Directive 2014/68/EU (PED), in civil and industrial air conditioning, convection and heating systems, industrial process plants and thermal machines; therefore they can not be used as safety valves. Group 2 includes water, superheated water, water with added glycol 50% max., Steam. For fluids belonging to group 2 other than those indicated, contact the Technical Support.
Valve body | Cast Iron |
---|---|
Plug | Inox |
PN | 16 |
T Fluid min [°C] | -10 |
T Fluid max [°C] | 200 |
Leakage [% Kvs] | 0,02 |
Stroke [mm] | 45 |
Valve type | 2 way |
DN [mm] | 200.00 |
Kvs | 500.00 |
Connection | Flanged |
Fluid | Water, Steam |
Max Differential Press. [kPa] | 600 |
Connection size | UNI EN 1092-1 |
Application | Industrial, HVAC-R |
Valve body | Cast Iron |
---|---|
Plug | Inox |
PN | 16 |
T Fluid min [°C] | -10 |
T Fluid max [°C] | 200 |
Leakage [% Kvs] | 0,02 |
Stroke [mm] | 45 |
Valve type | 2 way |
DN [mm] | 200.00 |
Kvs | 500.00 |
Connection | Flanged |
Fluid | Water, Steam |
Max Differential Press. [kPa] | 600 |
Connection size | UNI EN 1092-1 |
Application | Industrial, HVAC-R |
