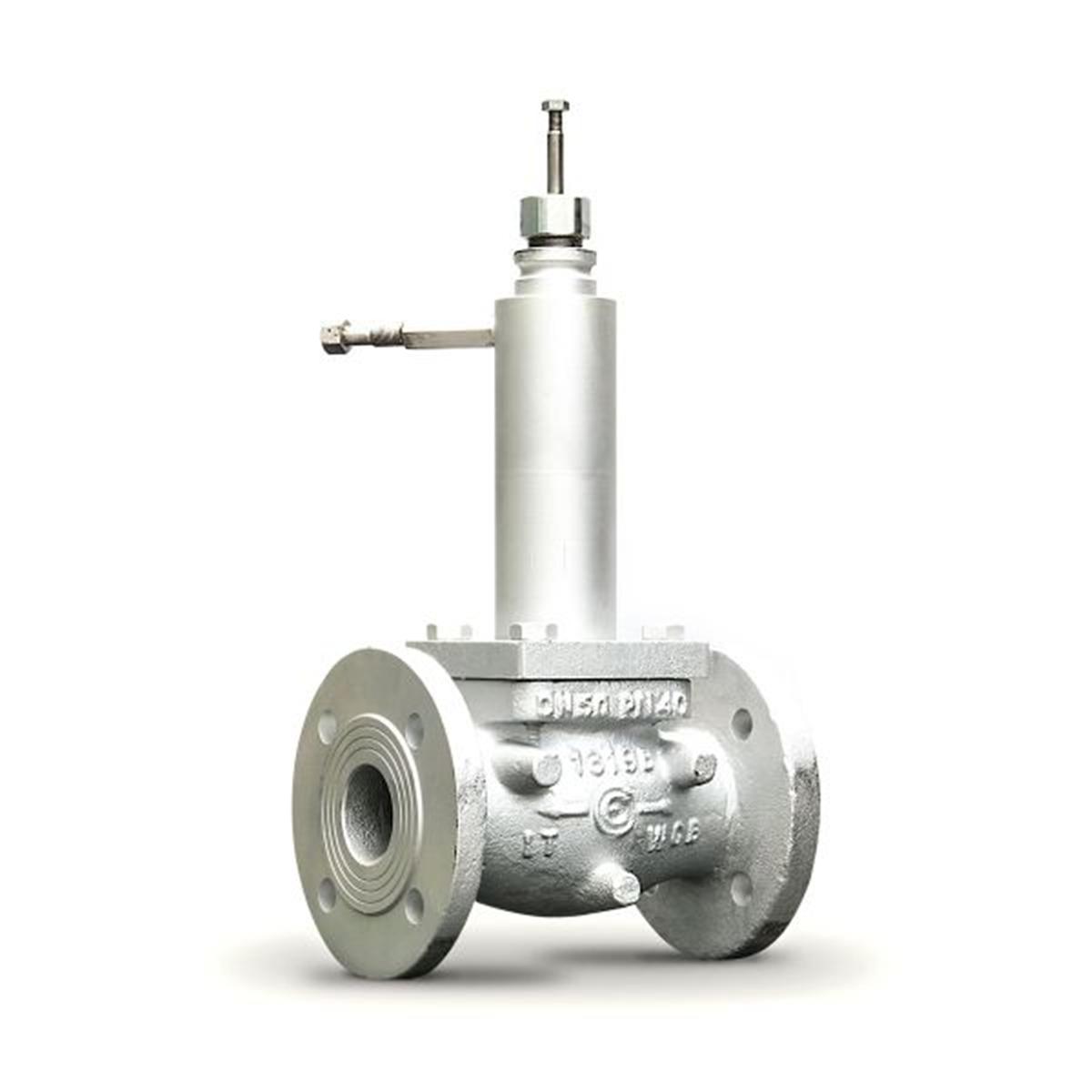

2FAA32P DN32 Kvs=16

Mã sản phẩm: 2FAA32P DN32 Kvs=16

Liên hệ

The 2FAA.P valves are used for the control of fluids belonging to group 1 (water, superheated water, steam, diathermic oil) in air conditioning systems, thermo-ventilation and civil heating, industrial or plants and thermal machines of industrial processes. They can not be used as safety valves.
The construction features with an equipercentual plug made of stainless steel make them particularly suitable for applications with fluids at very high temperatures (max 350 °C) or very low temperatures (-20 °C) in the "T" version. The seals are made with graphite seals for high temperatures. The materials used for the valve body and internal parts make them suitable for high pressures, temperatures and aggressive fluids (superheated steam and diathermic oil).

Mua ngay Liên hệ với chúng tôi

Thông tin chi tiết
Thông số kỹ thuật

Valve body	Steel
Plug	Inox
PN	40
T Fluid min [°C]	-20
T Fluid max [°C]	350
Leakage [% Kvs]	0,02
Stroke [mm]	25
Valve type	2 way
DN [mm]	32.00
Kvs	16.00
Connection	Flanged
Fluid	Oil, Steam
Max Differential Press. [kPa]	1200
Connection size	UNI EN 1092-1
Application	Industrial

Valve body	Steel
Plug	Inox
PN	40
T Fluid min [°C]	-20
T Fluid max [°C]	350
Leakage [% Kvs]	0,02
Stroke [mm]	25
Valve type	2 way
DN [mm]	32.00
Kvs	16.00
Connection	Flanged
Fluid	Oil, Steam
Max Differential Press. [kPa]	1200
Connection size	UNI EN 1092-1
Application	Industrial
