2FGA65 DN65 Kvs=63

Mã sản phẩm: 2FGA65 DN65 Kvs=63

Liên hệ

The 2FGA series valves are used for the control of fluids belonging to group 2 (water, superheated water, steam) according to the provisions of article 13 of Directive 2014/68/EU (PED) in air conditioning, heating and civil heating systems and industrial and plants and thermal machines of industrial processes; therefore they can not be used as safety valves.

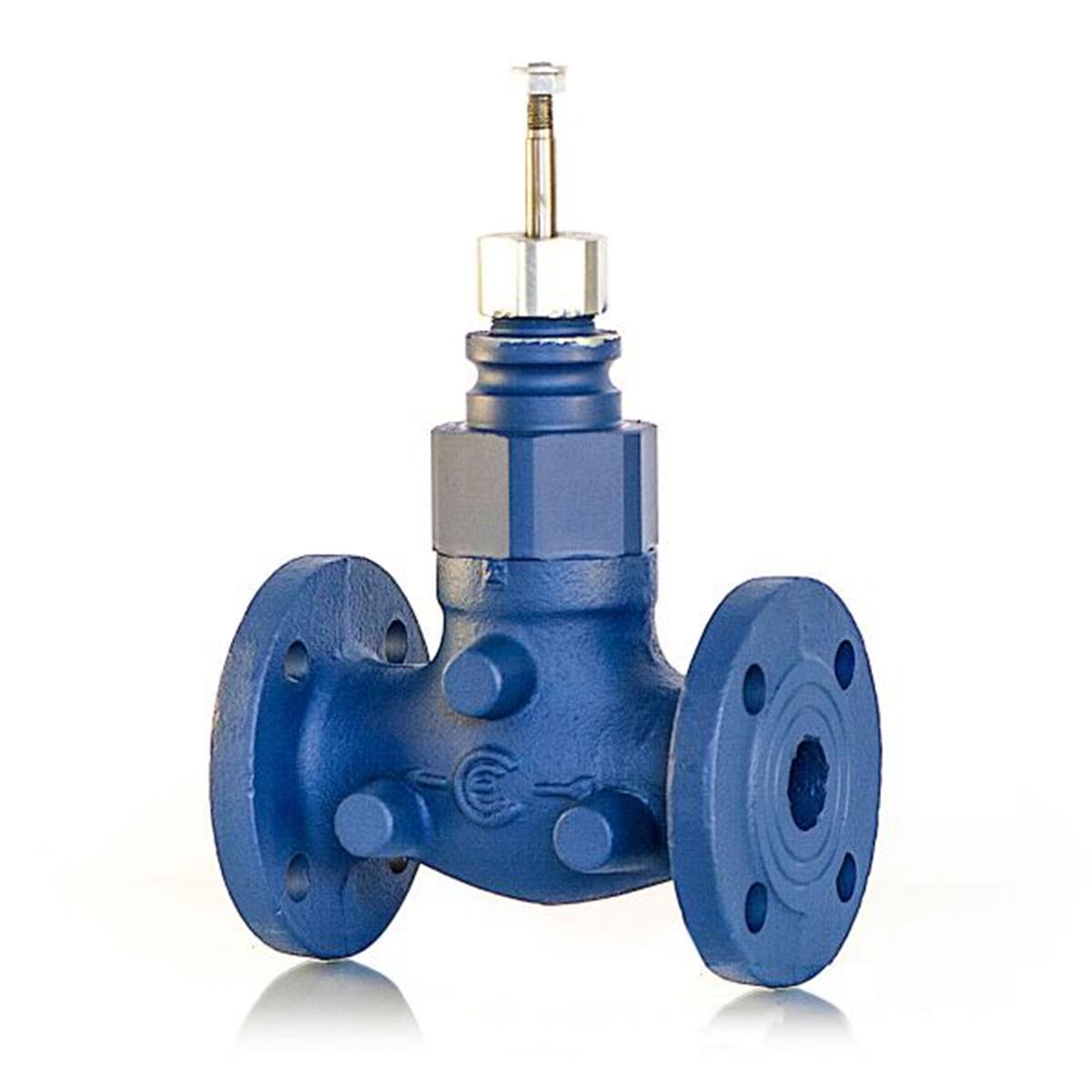

The valve body is made of gray cast iron with a stainless steel plug with an equipercentual characteristic and PN16 flanged connections. Seat and plug in stainless steel AISI 303 and Teflon seals make the valve particularly suitable for the control of aggressive fluids such as saturated or overheated steam.

Mua ngay Liên hệ với chúng tôi

Thông tin chi tiết
Thông số kỹ thuật

Valve body	Cast Iron
Plug	Inox
PN	16
T Fluid min [°C]	-10
T Fluid max [°C]	200
Leakage [% Kvs]	0,02
Stroke [mm]	25
Valve type	2 way
DN [mm]	65.00
Kvs	63.00
Connection	Flanged
Fluid	Water, Steam
Max Differential Press. [kPa]	600
Connection size	UNI EN 1092-1
Application	Industrial

Valve body	Cast Iron
Plug	Inox
PN	16
T Fluid min [°C]	-10
T Fluid max [°C]	200
Leakage [% Kvs]	0,02
Stroke [mm]	25
Valve type	2 way
DN [mm]	65.00
Kvs	63.00
Connection	Flanged
Fluid	Water, Steam
Max Differential Press. [kPa]	600
Connection size	UNI EN 1092-1
Application	Industrial
