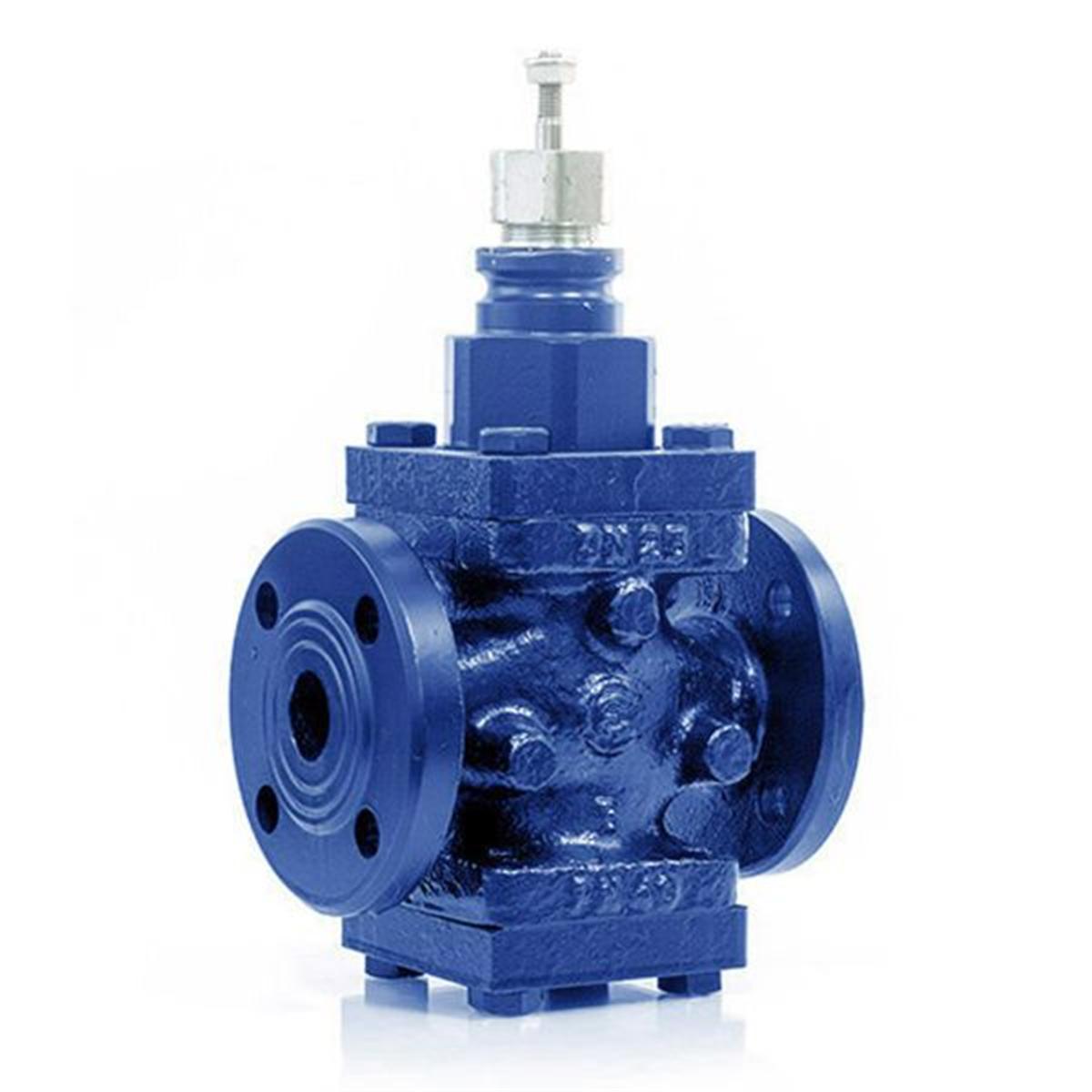

2FAA50B DN50 Kvs=40

Mã sản phẩm: 2FAA50B DN50 Kvs=40

Liên hệ

The 2FAA.B balanced valves are intended for use in heating, thermo-ventilation, air conditioning systems, both civil and industrial, and in industrial thermal process plants and can not be used as safety valves. They are applied in the control of fluids belonging to group 2 according to the provisions of art. 13 of Directive 2014/68/EU (PED). Group 2 includes water, superheated water, mixture water glycol 50% max., Steam. For fluids belonging to group 2 other than those indicated, contact the Technical Support. The peculiar characteristic of these valves is to work with high close-off and low-leak pressure. This makes them particularly suitable for applications on high pressure fluids and high exchange DTs such as superheated water (district heating systems, boiler boilers) and steam.

Mua ngay Liên hệ với chúng tôi

Thông tin chi tiết
Thông số kỹ thuật

Valve body	Steel
Plug	Inox
PN	40
T Fluid min [°C]	-20
T Fluid max [°C]	230
Leakage [% Kvs]	0,02
Stroke [mm]	25
Valve type	2 way balanced
DN [mm]	50.00
Kvs	40.00
Connection	Flanged
Fluid	Water, Steam
Max Differential Press. [kPa]	1200
Connection size	UNI EN 1092-1
Application	Industrial

Valve body	Steel
Plug	Inox
PN	40
T Fluid min [°C]	-20
T Fluid max [°C]	230
Leakage [% Kvs]	0,02
Stroke [mm]	25
Valve type	2 way balanced
DN [mm]	50.00
Kvs	40.00
Connection	Flanged
Fluid	Water, Steam
Max Differential Press. [kPa]	1200
Connection size	UNI EN 1092-1
Application	Industrial
