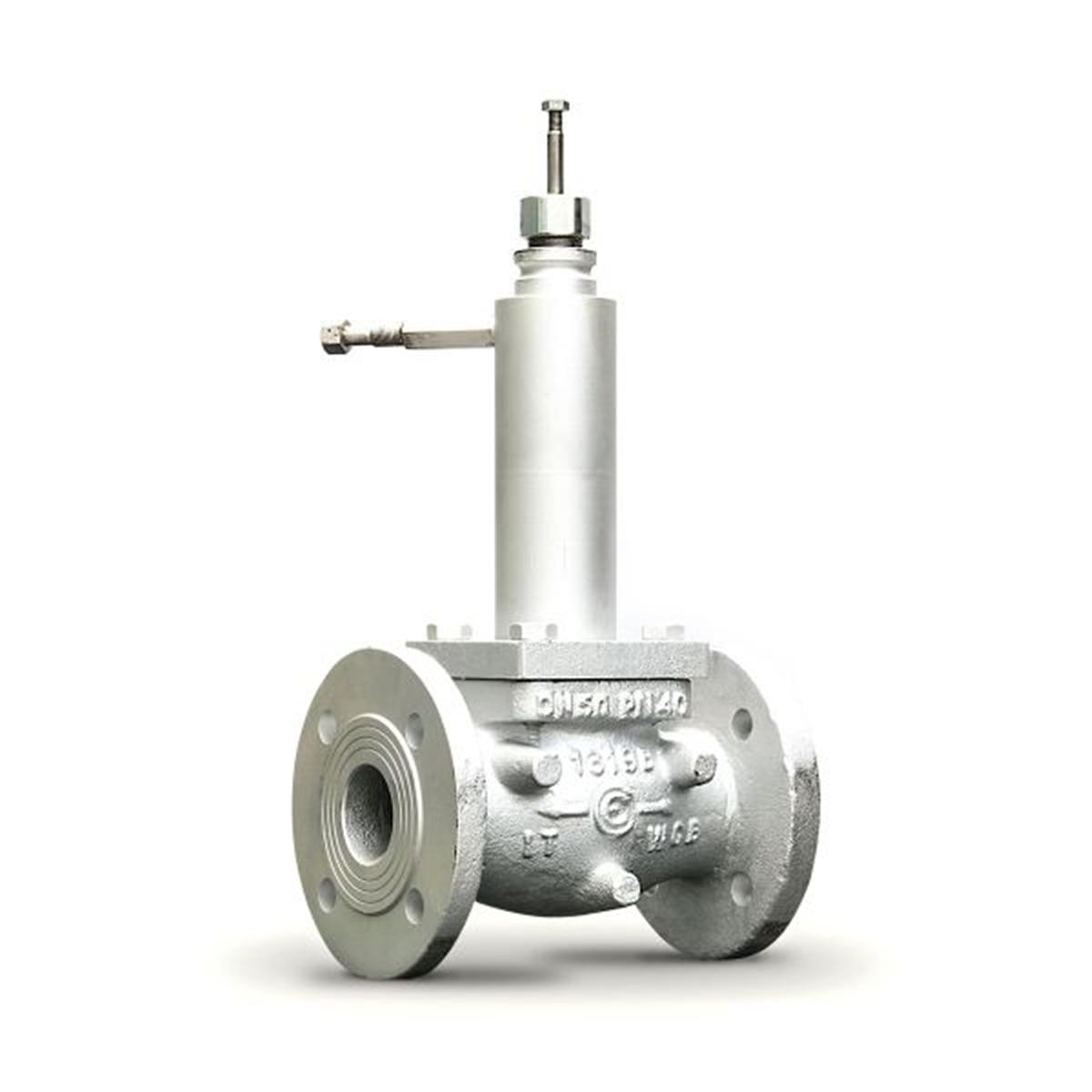

2FAA40P DN40 Kvs=24
Mã sản phẩm: 2FAA40P DN40 Kvs=24
Liên hệ
The 2FAA.P valves are used for the control of fluids belonging to group 1 (water, superheated water, steam, diathermic oil) in air conditioning systems, thermo-ventilation and civil heating, industrial or plants and thermal machines of industrial processes. They can not be used as safety valves.
The construction features with an equipercentual plug made of stainless steel make them particularly suitable for applications with fluids at very high temperatures (max 350 °C) or very low temperatures (-20 °C) in the "T" version. The seals are made with graphite seals for high temperatures. The materials used for the valve body and internal parts make them suitable for high pressures, temperatures and aggressive fluids (superheated steam and diathermic oil).
Valve body | Steel |
---|---|
Plug | Inox |
PN | 40 |
T Fluid min [°C] | -20 |
T Fluid max [°C] | 350 |
Leakage [% Kvs] | 0,02 |
Stroke [mm] | 25 |
Valve type | 2 way |
DN [mm] | 40.00 |
Kvs | 24.00 |
Connection | Flanged |
Fluid | Oil, Steam |
Max Differential Press. [kPa] | 1200 |
Connection size | UNI EN 1092-1 |
Application | Industrial |
